Roller Kiln

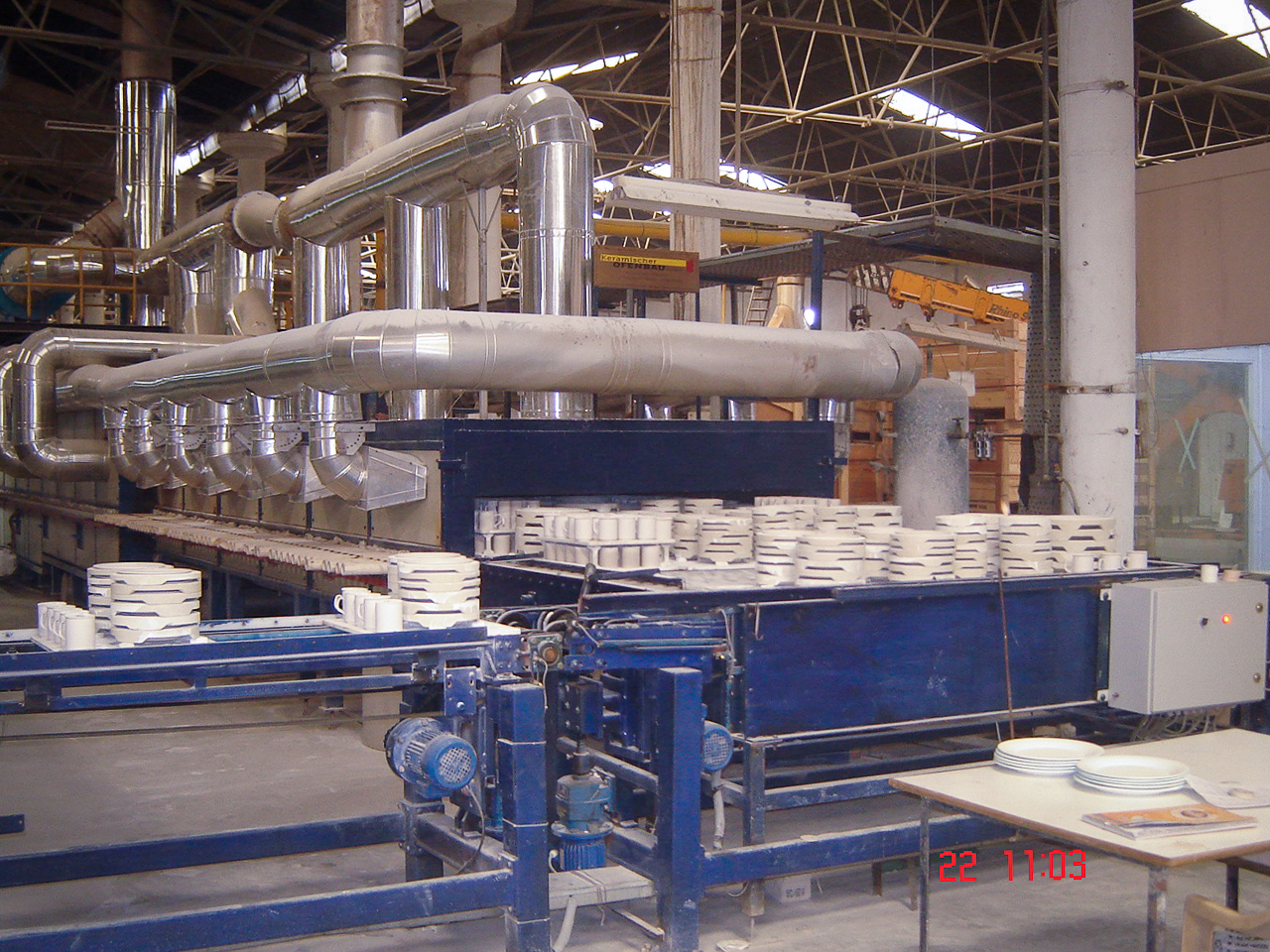

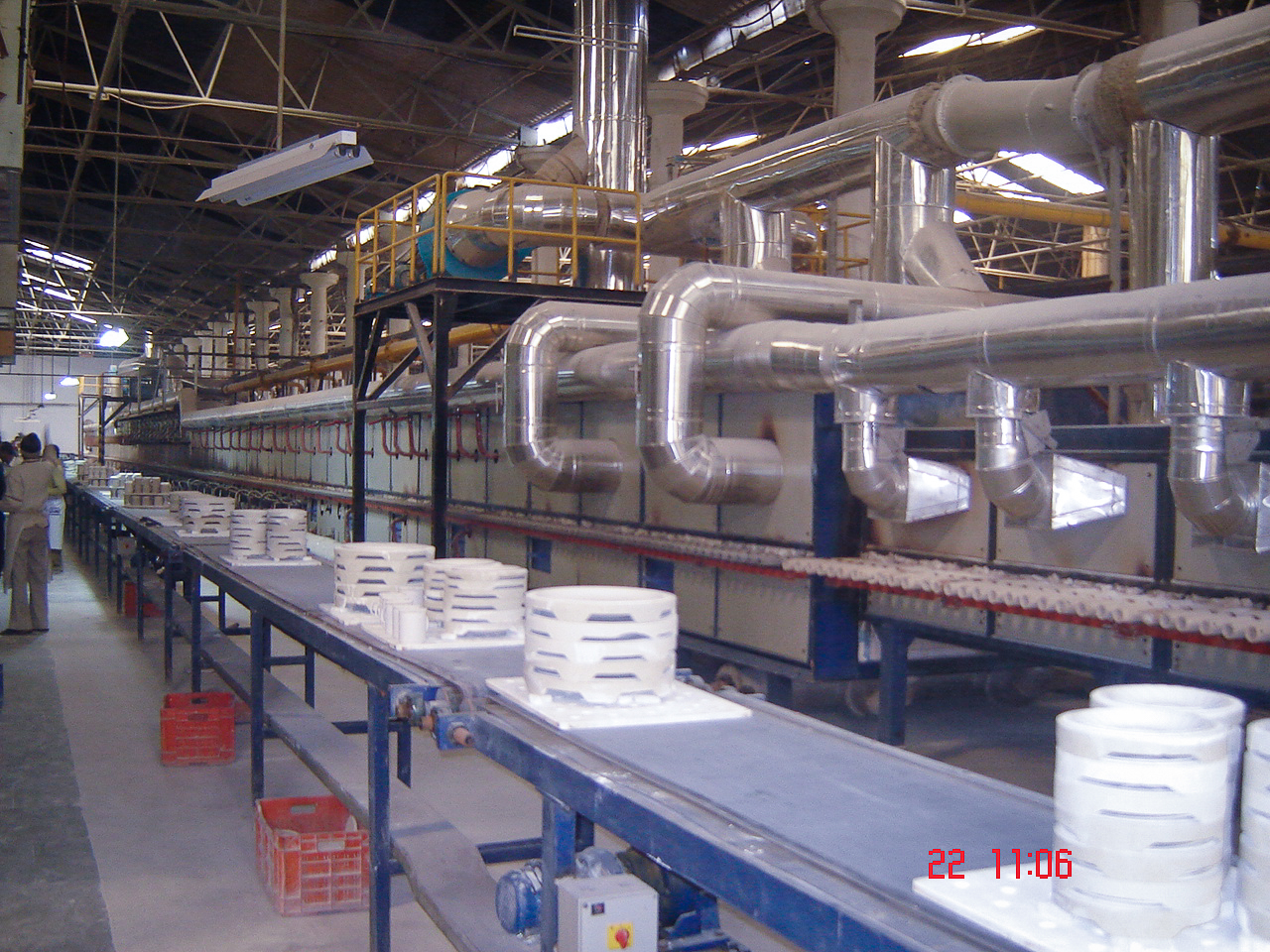

The roller kiln is a modern firing facility in modular design and different constructions for many fields of application and firing of:

  • Tableware and porcelain
  • Technical ceramics
  • Roof tiles and accessories
  • Clinker bricks and split tiles.
  • Sanitary ware
  • special applications

newly developed roller kiln concepts ensure highest product quality at minimum and personnel expenses. The reliable roller drive system is equipped with helical gear and runs in an oil bath, practically maintenance-free . Further advantages of this kiln types are the high temperature uniformity over the setting cross section in the different kiln zones and the significant reduction of the specific energy consumption and of the transit time.

Technical Data

Kiln length up to 150 m
Setting width up to 3 m
Roller level 1-3
Firing temperature 800-1650°C
Fuel natural gas, liquid gas, others upon request
Firing Cycle 20 min up to 48 h, depending on aplication
Kiln insulation fibre, lightweight bricks or sandwich construction

Characteristic of Roller Kiln

  • modular design
  • low energy consumption due to optimised kiln control and high quality refractory lining with best isolating properties and high refractory resistance, lining alternatively with refractory lightweight bricks or as full fiber lining
  • excellent firing results due to ideal temperature distribution.
  • high velocity nozzle mixing burners.
  • maintenance – free roller drive system.
  • self –optimisation of burners after power failure.
  • regulation by means of process control system with remote control function.
  • kiln visualization system available in many different languages.
  • remote control and teleservice via modem connection.
  • minimum maintenance and not much personnel required due to automation
  • oxidising /reducing atmosphere with high reproducibility possible.
  • slab transport system according to individual demands.
